HOSFIX

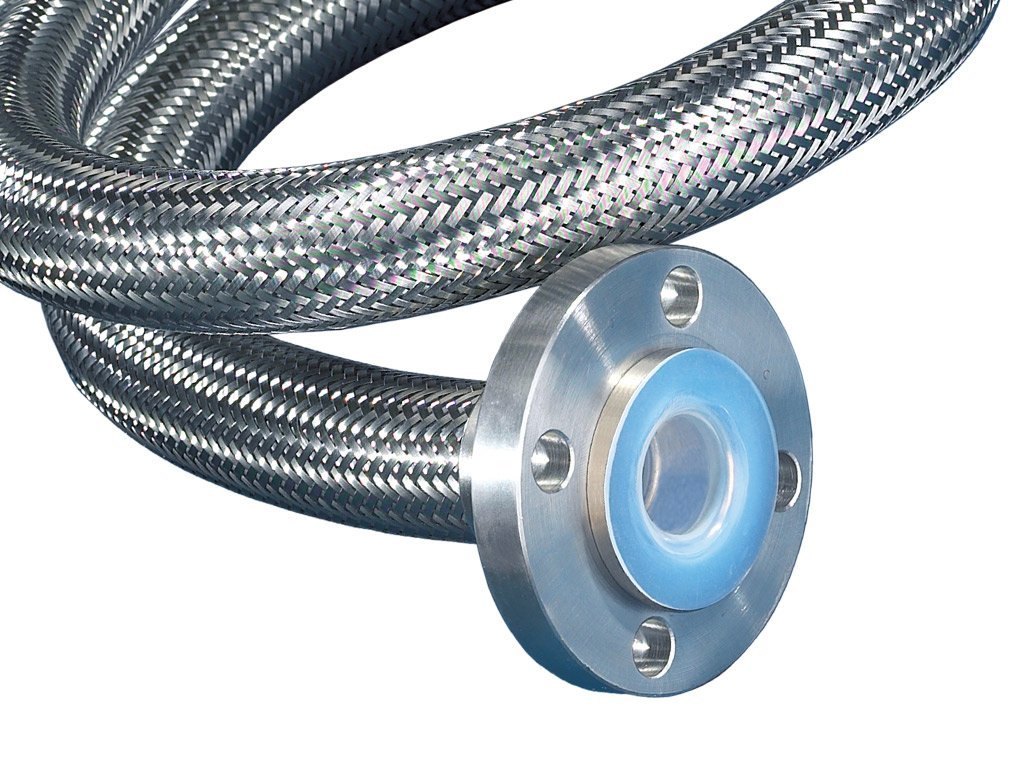

PTFE CONVOLUTED HOSE WITH SS 304 SINGLE BRAID SIZE 1" X 1.5 METER LONG BOTH END FLANGE WITH PTFE LINE STUB END

PTFE CONVOLUTED HOSE WITH SS 304 SINGLE BRAID SIZE 1" X 1.5 METER LONG BOTH END FLANGE WITH PTFE LINE STUB END

Regular price Rs. 3,750.00
Regular price Sale price Rs. 3,750.00
Sale Sold out

PTFE convoluted hose is a type of flexible tubing made from polytetrafluoroethylene (PTFE), a high-performance plastic. Here’s a rundown of what makes it special:

Key Characteristics:

  1. High Chemical Resistance: PTFE is known for its excellent resistance to a wide range of chemicals and solvents. This makes convoluted PTFE hoses ideal for applications where the hose might be exposed to aggressive chemicals.

  2. Temperature Tolerance: PTFE hoses can handle extreme temperatures, typically ranging from -100°F to +500°F (-73°C to +260°C), making them suitable for both cryogenic and high-temperature applications.

  3. Low Friction Coefficient: The inner surface of PTFE hoses is very smooth, which minimizes friction and helps in the easy flow of fluids. This property also helps in reducing pressure drops.

  4. Flexibility: The convoluted design of the hose provides flexibility, allowing it to bend and twist without kinking, while maintaining its strength and durability. This design is especially useful in applications requiring frequent movement or tight routing.

  5. Non-Stick Surface: PTFE has a non-stick surface, which prevents materials from adhering to the inside of the hose, making it easier to clean and maintain.

Applications:

  • Chemical Processing: Ideal for transferring corrosive chemicals and aggressive solvents.
  • Pharmaceuticals: Used in processes where cleanliness and chemical resistance are crucial.
  • Food and Beverage: Employed where hygiene and resistance to high temperatures are necessary.
  • Aerospace and Automotive: Useful in high-temperature and high-pressure applications where flexibility and chemical resistance are important.

Construction:

PTFE convoluted hoses are often reinforced with a stainless steel braid or other types of reinforcement to enhance their pressure resistance and durability. The convoluted design is achieved through a process that creates a series of ridges and grooves along the length of the hose, providing flexibility and strength.

If you’re considering PTFE convoluted hose for a specific application, it's important to match the hose’s specifications with the requirements of your system, such as pressure ratings, temperature ranges, and chemical compatibility.
